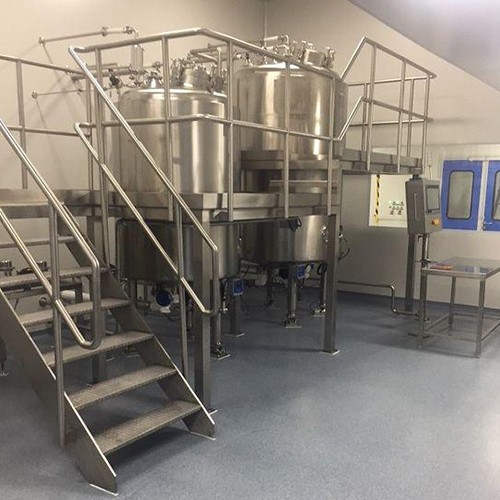

Liquid Oral Syrup Manufacturing Plant
The Liquid Oral Syrup Manufacturing Plant is a fully integrated, GMP-compliantprocessing system designed for the hygienic production of oral syrups, suspensions,solutions, elixirs, pediatric formulations, and other liquid pharmaceutical products. Theplant combines advanced mixing, heating, filtration, homogenization, storage, and transfertechnologies to ensure consistent product quality, accurate batch preparation, andcontamination-free manufacturing.
Engineered with sanitary SS316L contact parts and PLC-based automation, the systemoffers precise process control, efficient cleaning through CIP & SIP integration, andseamless connectivity with liquid filling and packaging lines.
-
Key Features
• Fully Automatic PLC & HMI Controlled Operation
• GMP-Compliant Hygienic Design
• SS316L Product Contact Parts
• Sugar Syrup Preparation System
• Medicine Mixing Vessel
• Jacketed Heating & Cooling System
• Variable Speed Agitator
• Inline Filtration System
• Vacuum Transfer (Optional)
• Load Cell Batch Weighing (Optional)
• Automatic Ingredient Addition (Optional)
• Integrated CIP & SIP Facility
• SCADA Integration Available
• Recipe-Based Batch Management
• Low Product Loss Design
• Modular Skid Mounted Construction -

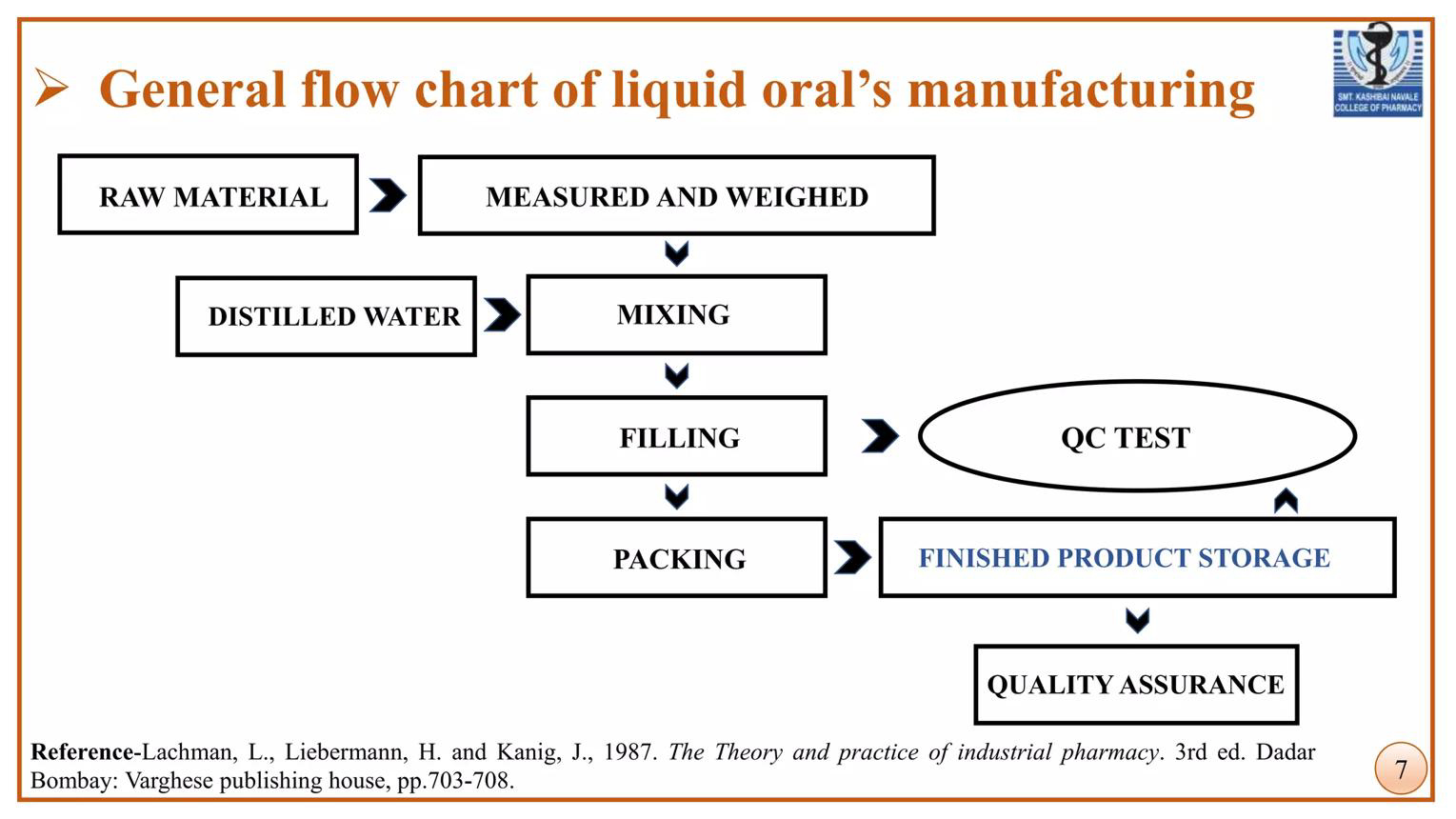

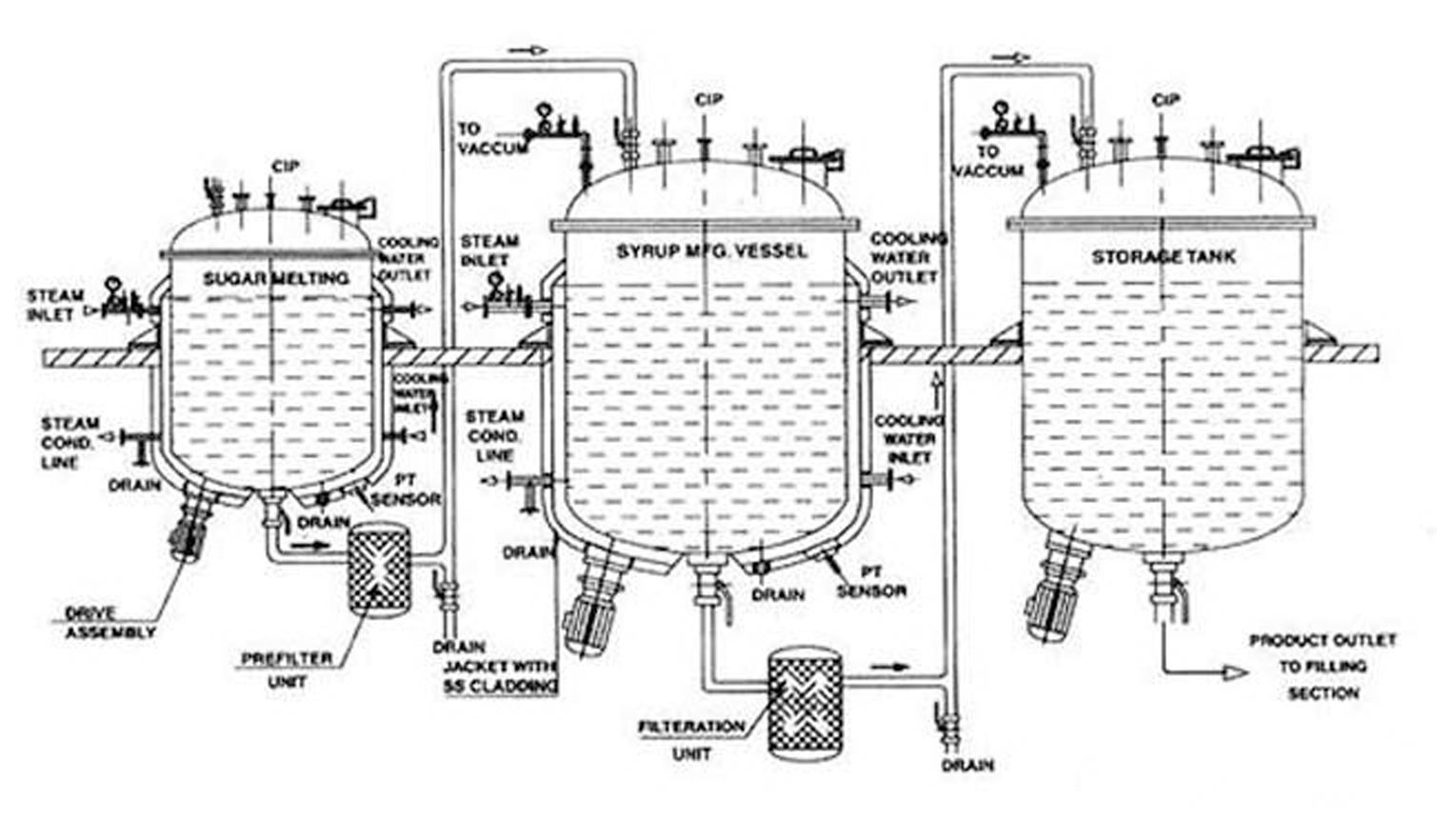

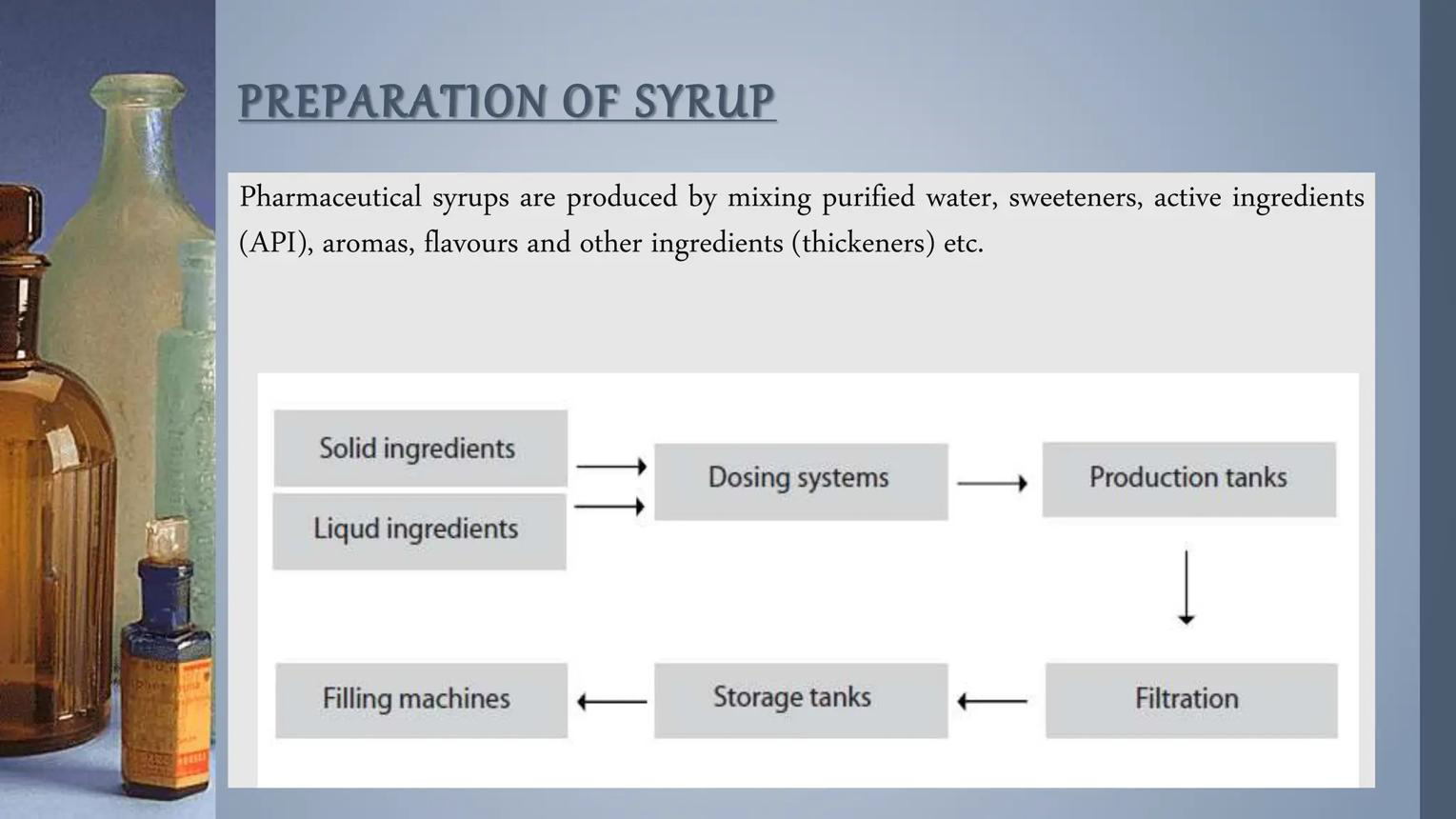

Process Flow
-

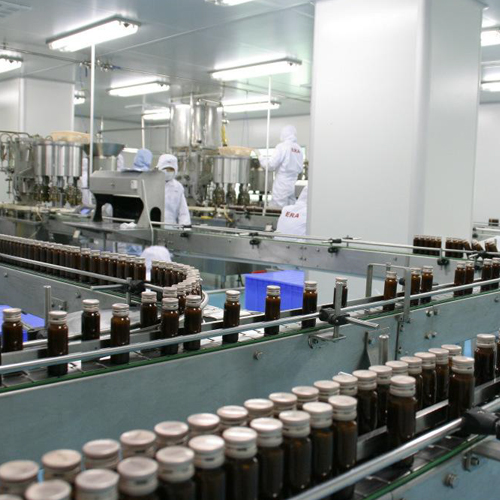

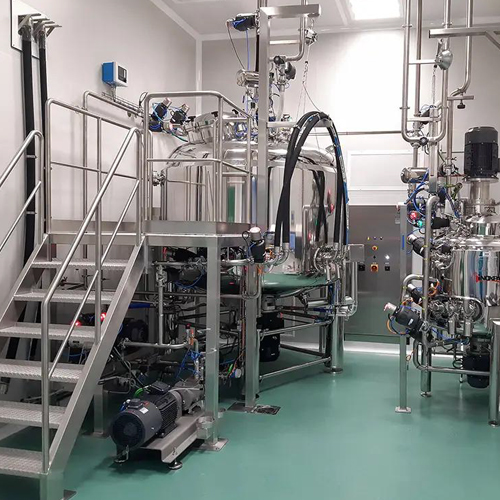

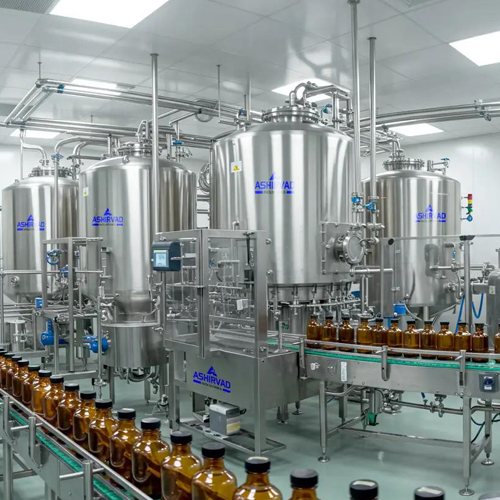

Applications
-

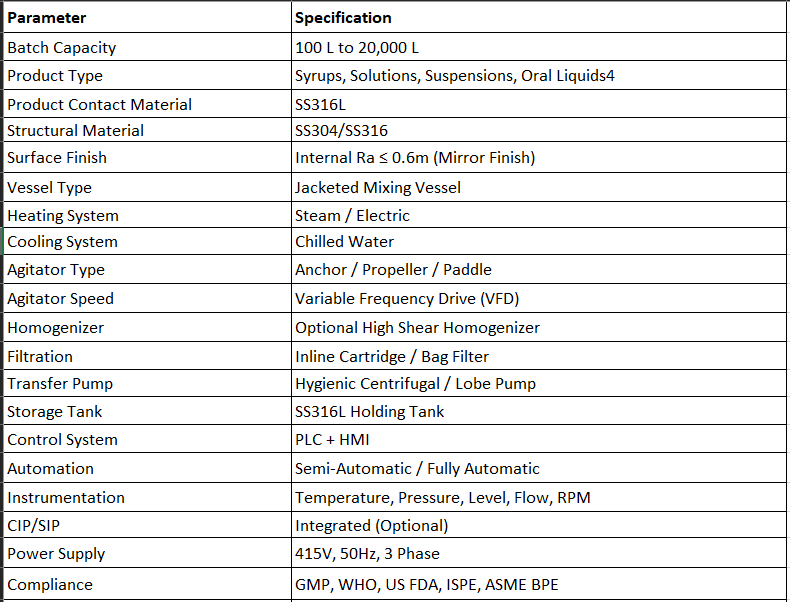

Technical Specifications
-

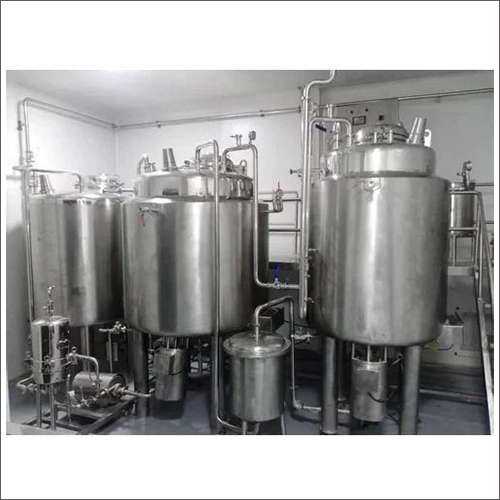

Standard Plant Configuration
The complete plant generally includes:
• Purified Water Receiving Tank
• Sugar Syrup Preparation Vessel
• Medicine Preparation Vessel
• Main Manufacturing Vessel
• Inline Filtration System
• High Shear Homogenizer (Optional)
• Storage / Holding Tank
• Hygienic Transfer Pumps
• SS316L Sanitary Pipeline Network
• PLC & HMI Control Panel
• CIP & SIP Connections
• Filling Machine Interface -
Optional Features
• Automatic Ingredient Feeding System
• Load Cell Weighing System
• Recipe-Based Batch Automation
• SCADA Integration
• 21 CFR Part 11 Compliance
• Inline Homogenizer
• Vacuum Powder Feeding System
• Pigging System
• Jacket Insulation with SS Cladding
• Online Temperature Recording
• Remote Monitoring
• Automatic Batch Reporting -
Optional Features
• Vacuum Mixing System
• High Shear Inline Homogenizer
• Automatic Powder Feeding System
• Load Cell Weighing System
• Recipe Management Software
• SCADA System
• 21 CFR Part 11 Compliance
• Online Conductivity & Temperature Monitoring
• Remote Monitoring
• Data Logging & Batch Reporting
• Automatic Valve Matrix
• Heat Exchanger for Rapid Cooling -
Advantages
• Uniform Mixing and Product Consistency
• Accurate Batch Preparation
• Reduced Product Loss
• High Production Efficiency
• Hygienic Contamination-Free Processing
• Easy Cleaning with CIP & SIP
• Low Operating and Maintenance Costs
• Energy-Efficient Design
• Faster Batch Changeover
• Reliable and Repeatable Production
• Seamless Integration with Filling Lines
• Long Equipment Service Life -
Compliance
Designed in accordance with:
• GMP (Good Manufacturing Practices)
• WHO Guidelines
• US FDA Requirements
• EU GMP
• ISPE Guidelines
• ASME BPE Standards
• GAMP 5
• IQ, OQ & PQ Documentation Support -

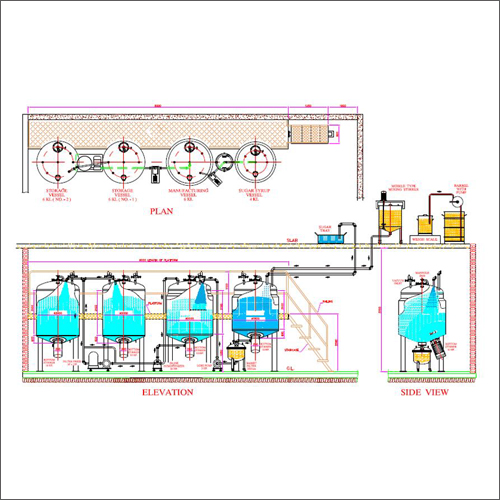

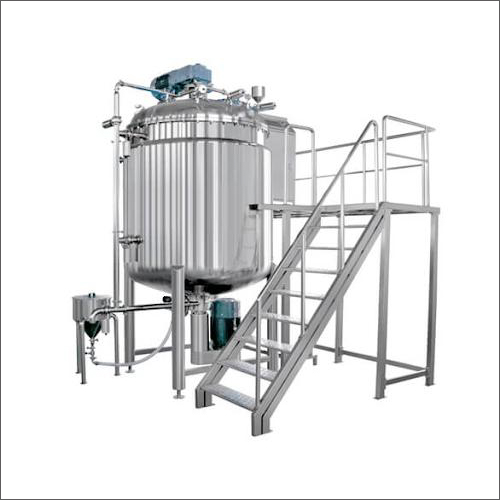

Typical Plant Layout
The integrated plant typically consists of:
• Purified Water Feed System
• Sugar Syrup Preparation Vessel
• Medicine Mixing Vessel
• Main Manufacturing Vessel
• Filtration Unit
• Optional High Shear Homogenizer
• Storage / Holding Tank
• Hygienic Transfer Pumps
• Sanitary SS316L Piping
• PLC & HMI Control System
• CIP & SIP Manifold
• Interface with Automatic Liquid Filling Machine -
Industries Served
• Pharmaceutical Manufacturing
• Nutraceutical Industry
• Herbal & Ayurvedic Products
• Veterinary Pharmaceuticals
• Biotechnology
• Healthcare Products
• Food & Beverage (Liquid Formulations)
• Research & Development Laboratories -
Key Benefits
• Complete turnkey solution for the production of oral syrups, suspensions, and liquidmedicines
• Precision-controlled mixing, heating, cooling, and filtration for consistent productquality
• Hygienic SS316L construction with GMP-compliant design for safe andcontamination-free processing
• Integrated automation reduces manual intervention and improves batch repeatability

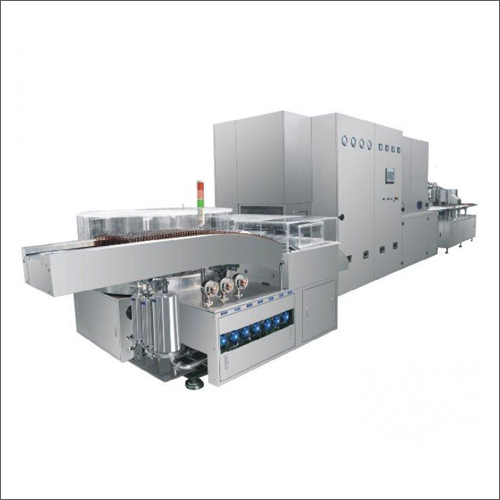

• Compatible with automatic bottle washing, filling, capping, labeling, and packaginglines
• Available in customized capacities and automation levels to meet specific productionand regulatory requirements
