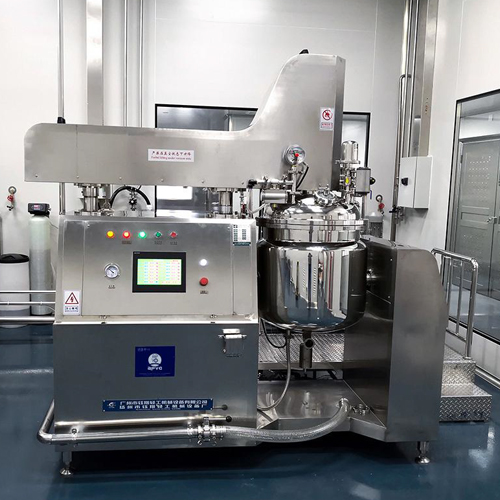

Ointment, Cream & Lotion Manufacturing Plant
The Ointment, Cream & Lotion Manufacturing Plant is a complete, GMP-compliantprocessing system designed for the hygienic production of semi-solid and liquidformulations used in the pharmaceutical, cosmetic, personal care, and veterinaryindustries. The plant is engineered to deliver consistent product quality through controlledmixing, heating, homogenization, vacuum processing, and efficient transfer to fillingmachines.
Designed with advanced automation and sanitary construction, the system ensuresuniform emulsification, excellent batch repeatability, minimal product loss, and easycleaning through integrated CIP & SIP capabilities.
-
Key Features
• Vacuum Emulsification Technology
• High Shear Homogenizer
• Anchor Agitator with Scraper
• PLC & HMI Based Automatic Control
• Fully GMP-Compliant Design
• SS316L Product Contact Parts
• Jacketed Heating & Cooling System
• Variable Speed Mixing
• Vacuum Deaeration for Air-Free Product
• Bottom Homogenizer for Fine Emulsion
• Hygienic Mechanical Seal Design
• Integrated CIP & SIP Facility
• Load Cell Based Batch Control (Optional)
• Recipe Management System
• Automatic Ingredient Charging (Optional)
• Modular Skid Mounted Design -

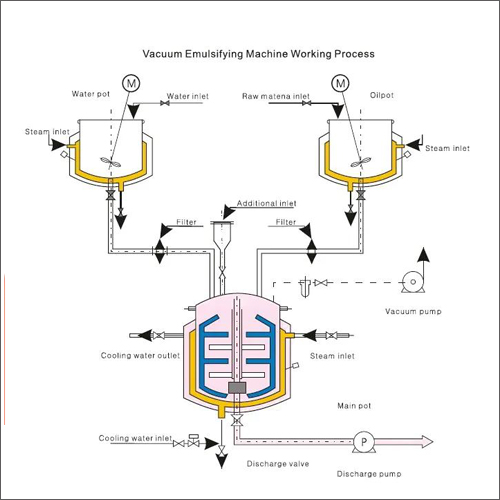

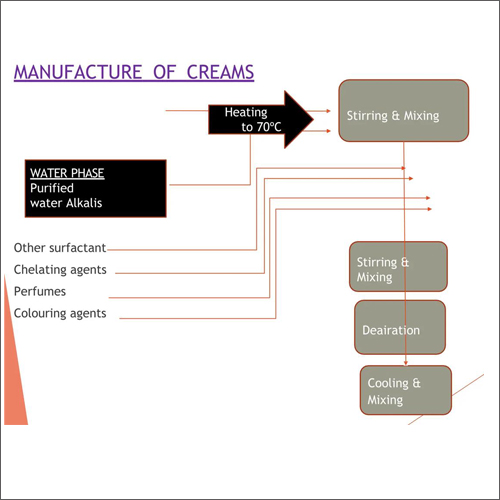

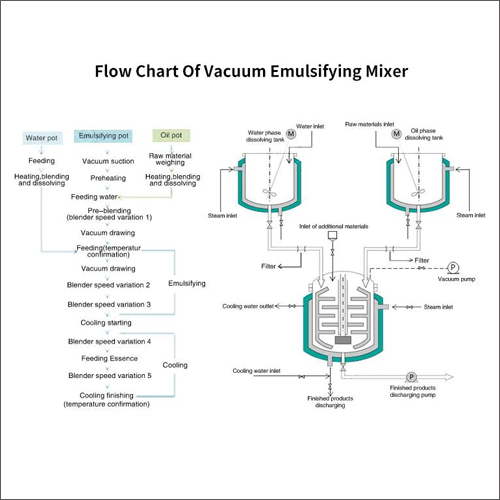

Process Flow
-

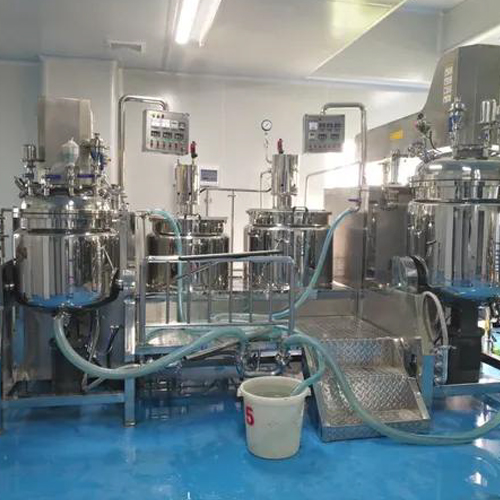

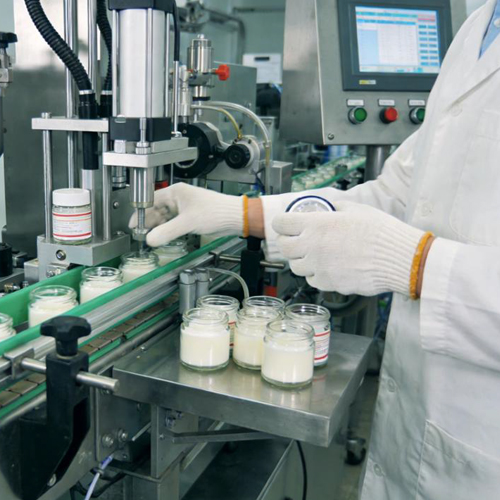

Applications
-

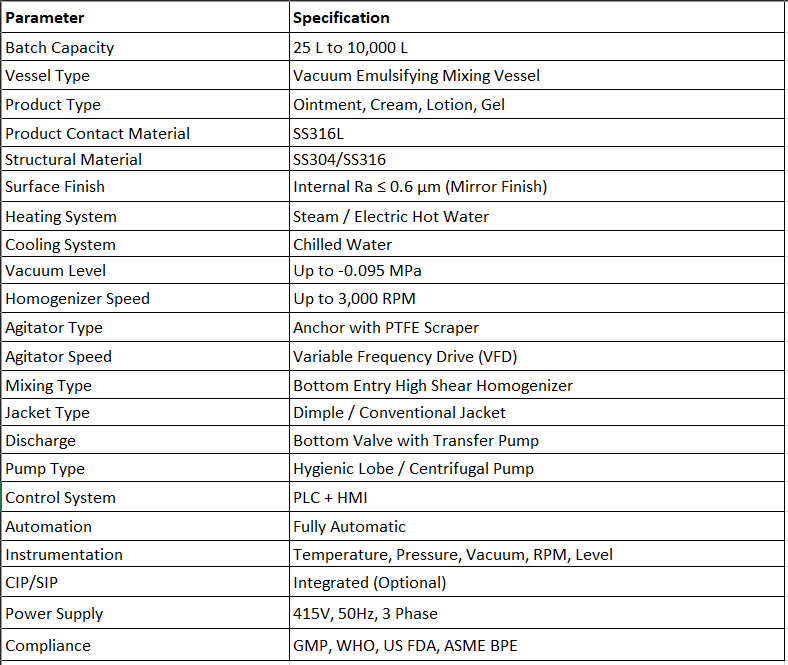

Technical Specifications
-
Standard Plant Configuration
The complete plant generally includes:
• Water Phase Manufacturing Vessel
• Oil Phase Manufacturing Vessel
• Vacuum Emulsifying Main Manufacturing Vessel
• High Shear Homogenizer
• Anchor Agitator with Scraper
• Vacuum System
• Heating & Cooling System
• Product Transfer Pump
• Storage / Holding Tank
• PLC & HMI Control Panel
• CIP & SIP Connections
• SS316L Transfer Piping -
Optional Features
• Automatic Ingredient Feeding System
• Load Cell Weighing System
• Recipe-Based Batch Automation
• SCADA Integration
• 21 CFR Part 11 Compliance
• Inline Homogenizer
• Vacuum Powder Feeding System
• Pigging System
• Jacket Insulation with SS Cladding
• Online Temperature Recording
• Remote Monitoring
• Automatic Batch Reporting -
Advantages
• Uniform Emulsification & Mixing
• Excellent Product Stability
• Bubble-Free Final Product
• High Production Efficiency
• Low Product Loss
• Faster Batch Processing
• Energy Efficient Design
• Easy Cleaning & Maintenance
• Reduced Manual Intervention
• Improved Batch Consistency
• Hygienic & Contamination-Free Production
• Long Equipment Service Life -
Compliance
Designed in accordance with:
• GMP
• WHO Guidelines
• US FDA
• EU GMP
• ASME BPE
• ISPE Guidelines
• GAMP 5
• IQ, OQ & PQ Documentation Support -

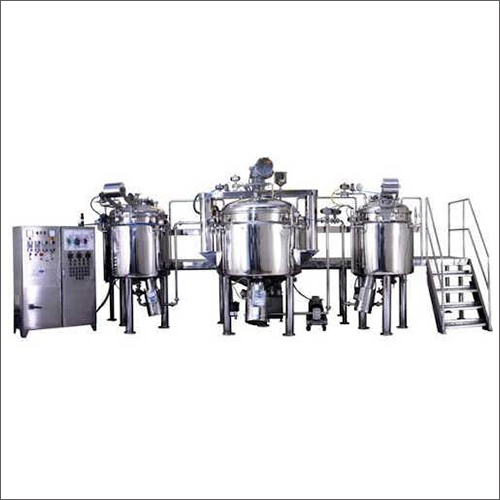

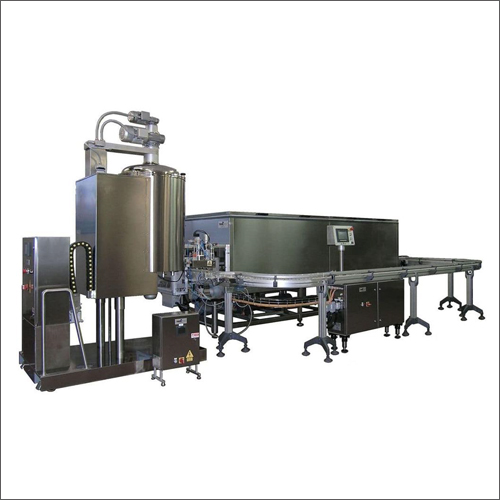

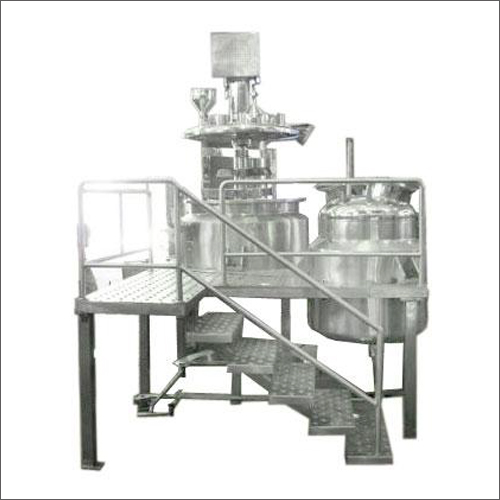

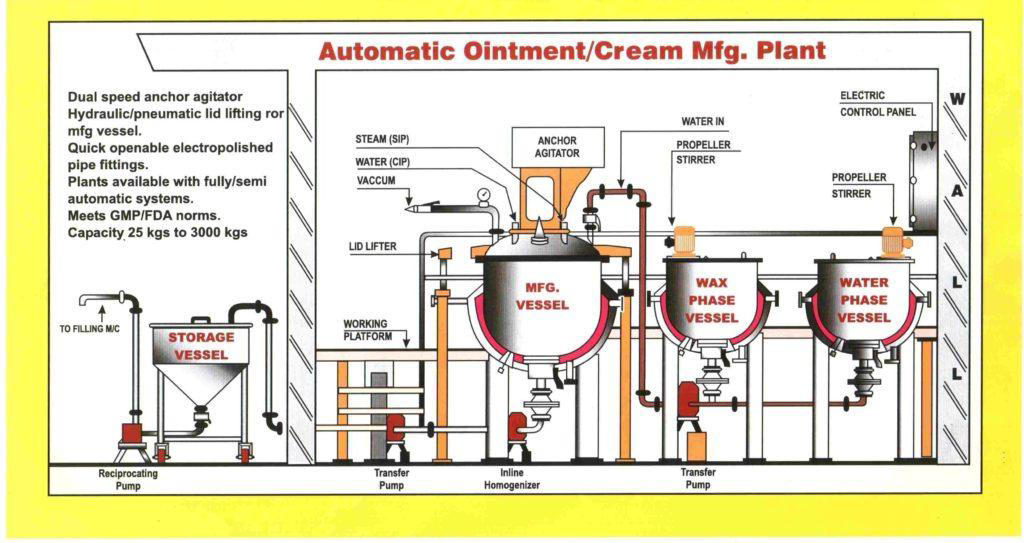

Typical System Configuration
The integrated manufacturing plant typically consists of:
• Water Phase Vessel
• Oil Phase Vessel
• Vacuum Emulsifying Vessel
• High Shear Homogenizer
• Vacuum Pump
• Heating & Cooling Circuit
• Product Transfer Pump4
• Storage Tank
• Sanitary Pipeline Network
• PLC & HMI Control System
• CIP & SIP Manifold
• Filling Machine Interface -
Industries Served
• Pharmaceutical Manufacturing
• Cosmetic Industry
• Personal Care Products
• Herbal & Ayurvedic Products
• Veterinary Pharmaceuticals
• Biotechnology
• Nutraceuticals
• Healthcare Products -
Key Benefits
• Complete turnkey manufacturing solution for ointments, creams, lotions, and gels
• Vacuum processing minimizes air entrapment and improves product stability
• High-shear homogenization ensures smooth texture and uniform particle distribution
• Hygienic GMP design with SS316L contact parts for contamination-free production
• Easy integration with storage tanks, transfer systems, and automatic filling lines
• Available in customized capacities and automation levels to meet specific productionrequirements.
