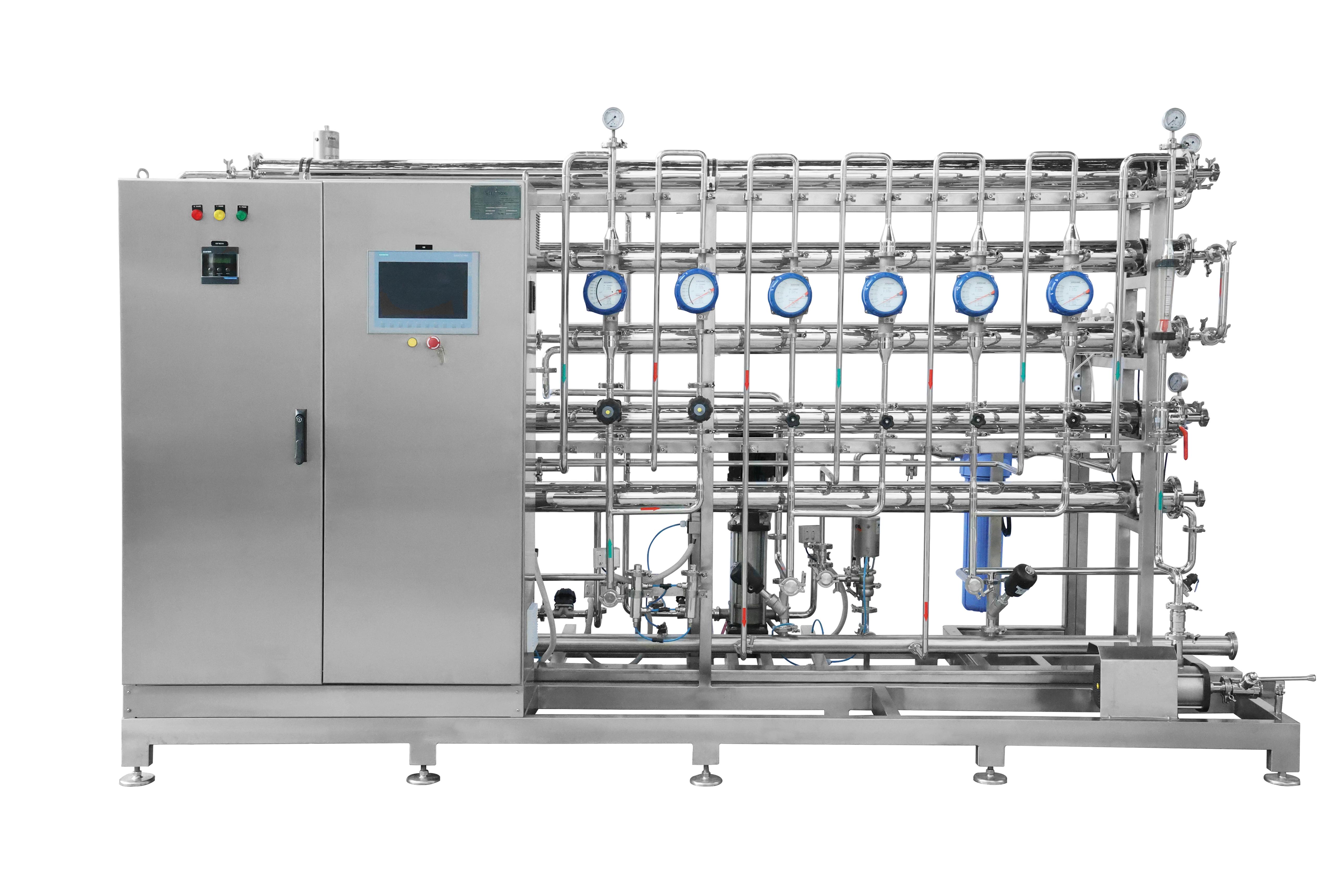

Pre-Treatment & RO + EDI Water Generation & Distribution System
The Pre-Treatment & RO + EDI Water Generation & Distribution System is designed toproduce high-purity pharmaceutical-grade Purified Water (PW) compliant with GMP, WHO,US FDA, and international pharmacopoeia standards. The system combines advancedpre-treatment, Reverse Osmosis (RO), and Electrodeionization (EDI) technologies todeliver consistently high-quality purified water for pharmaceutical manufacturing.
Designed with fully automated PLC-based control and sanitary SS316L distribution loops,the system ensures continuous circulation, microbial control, minimal maintenance, andreliable operation.
-
Key Features
• Fully Automatic PLC & HMI Controlled Operation
• Continuous Purified Water Generation
• GMP & FDA Compliant Design
• SS316L Product Contact Parts
• Hygienic Orbital Welded Piping
• Dead Leg Free Distribution Loop
• Automatic RO Membrane Flushing
• Automatic Sanitization Cycle
• Low Conductivity Water Output
• Low TOC & Microbial Control
• Online Conductivity Monitoring
• Flow, Pressure & Temperature Monitoring
• Optional SCADA & 21 CFR Part 11 Compliance
• Modular Skid Mounted Construction
• Energy Efficient Design -

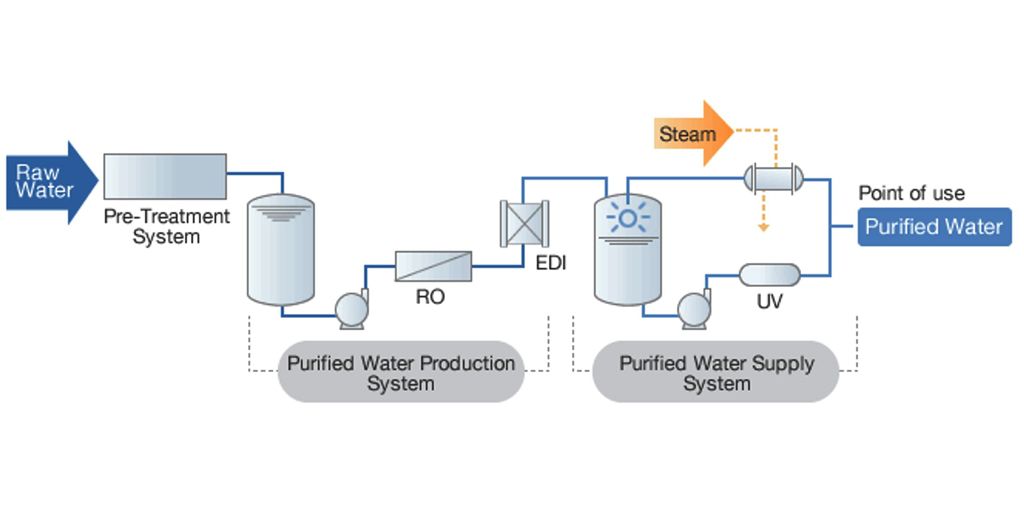

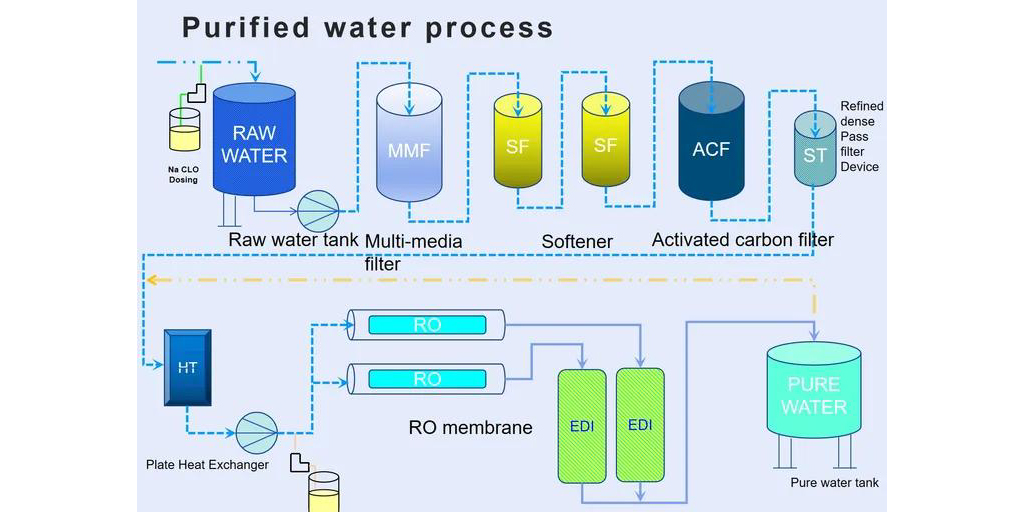

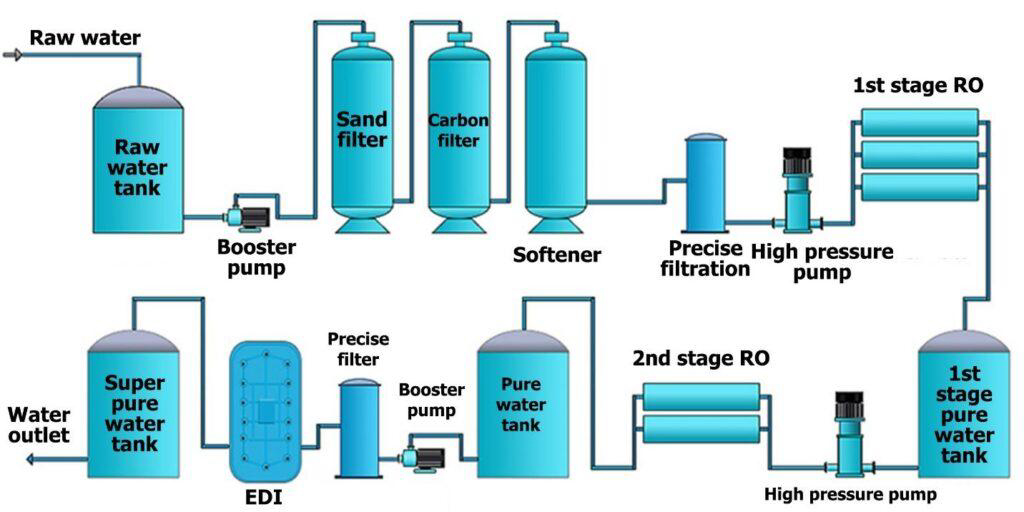

Process Flow
-
Typical Applications
-

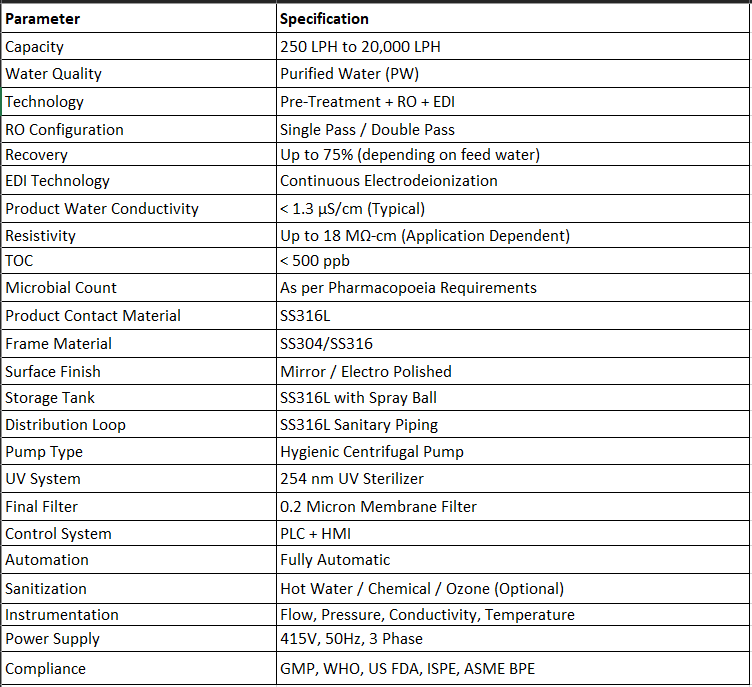

Technical Specifications
-
Optional Features
• Double Pass RO
• Ozone Sanitization
• Hot Water Sanitization
• Heat Exchanger
• TOC Analyzer
• Online Microbial Monitoring
• SCADA Integration
• 21 CFR Part 11 Software
• SMS Alarm System
• Remote Monitoring
• Data Logging
• Automatic Valve Sequencing -
Advantages
• Superior Water Quality
• Low Operating Cost
• Chemical-Free EDI Operation
• Continuous Water Production
• Low Maintenance
• Compact Footprint
• Long Membrane Life
• Fully Automated Operation
• Easy Validation
• Reliable Performance
• High Energy Efficiency
• Reduced Human Intervention -
Compliance
Designed according to:
• GMP
• WHO
• US FDA
• EU GMP
• ISPE Guidelines
• ASME BPE
• GAMP 5
• cGMP Standards -
Typical Applications
-
Industries Served
• Pharmaceutical
• Biotechnology
• Healthcare
• Cosmetics7
• Nutraceuticals
• Food & Beverage
• Research Laboratories
• Chemical Processing
This content is suitable for a pharmaceutical machinery company brochure, productcatalog, or website product page, presenting a professional overview along with detailedtechnical specifications for a Pre-Treatment & RO + EDI Water Generation & Distribution System .
